HD Clamp for 3.500" OD Tubing - Anodized Black
HD Clamp for 3.500" OD Tubing - Anodized Black
HD Clamp for 3.500" OD Tubing - Anodized Black
HD Clamp for 3.500" OD Tubing - Anodized Black
HD Clamp for 3.500" OD Tubing - Anodized Black
HD Clamp for 3.500" OD Tubing - Anodized Black

HD Clamp for 3.500" OD Tubing - Anodized Black

by Ace Race Parts
SKU 13221
Availability:
Only 12 left!
$ 81.99 - $ 81.99
$ 81.99
$ 81.99 - $ 81.99
$ 81.99

Product Dimension Info

Detailed product dimensions are listed further down this page. All dimensions are nominal and subject to material and manufacturing tolerances. If you need help with a dimension, please email us at your convenience.

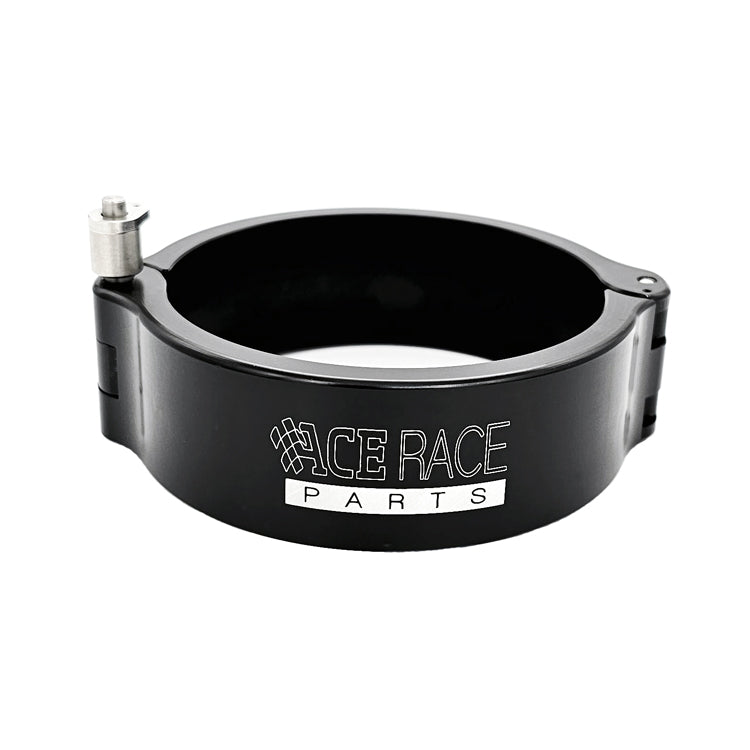

The Ace Race Parts brand of HD Clamps feature full 6061 Aluminum billet construction and are the perfect choice for high pressure air applications, like turbo intake charge piping. Our HD Clamps come with a black anodized finish that will withstand the harshest conditions. Pair our HD Clamps with our HD Clamp Flange sets, HD Clamp Union Sleeves, and FKM O-Rings to create a leak-free seal with a burst pressure rating of 800 psi.

PRODUCT HIGHLIGHTS:

  • Burst Pressure Rating: 800 psi
  • Temperature Rating: 400°F / 204°C
  • Axial Movement, Angular Deflection: Up to 12°
  • Full 6061 Aluminum Billet Construction

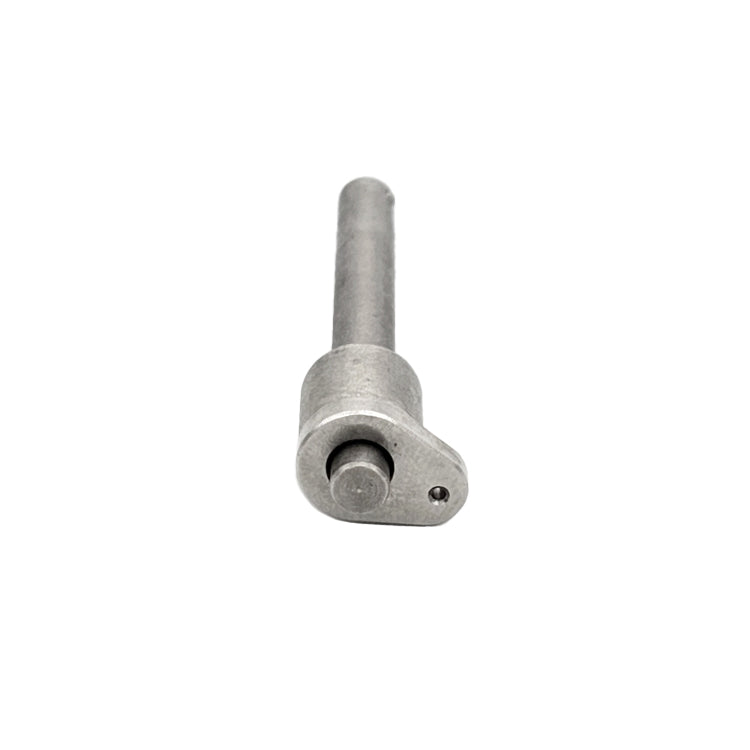

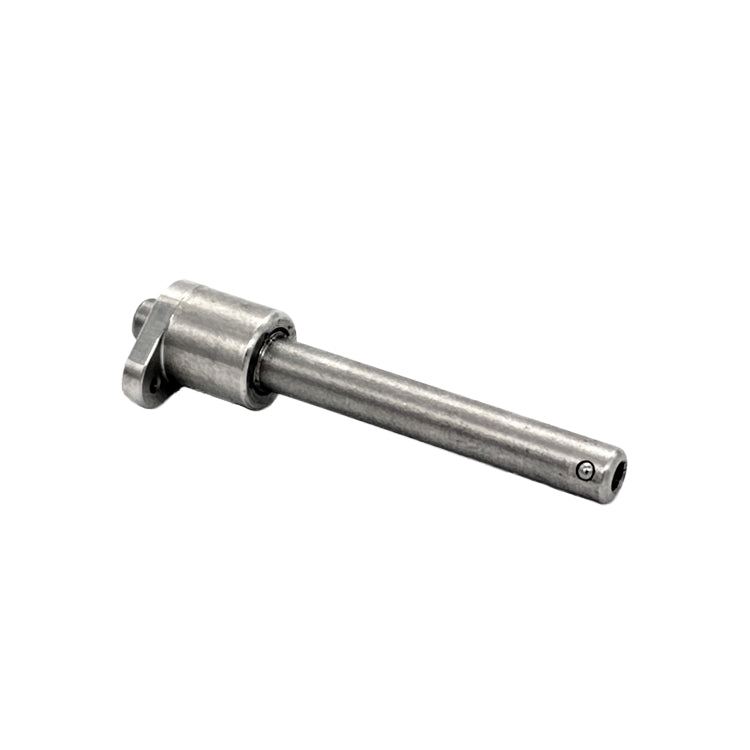

  • Includes Quick Release Locking Pin

WHAT'S IN THE BOX:

  • One (1) 6061 Aluminum Clamp, Black Anodized
  • One (1) Quick Release style Clamp Locking Pin
