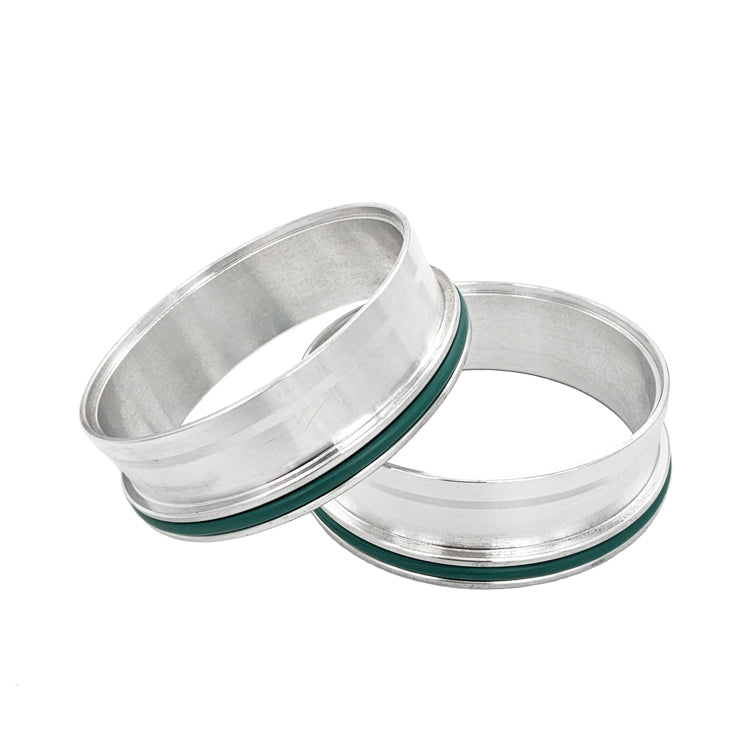

HD Clamp Flange Set for 5.000" OD Tubing, 6061 Aluminum, FKM O-Rings

HD Clamp Flange Set for 5.000" OD Tubing, 6061 Aluminum, FKM O-Rings

by Ace Race Parts
SKU 13238
Availability:
Only 24 left!
$ 49.99 - $ 49.99
$ 49.99
$ 49.99 - $ 49.99
$ 49.99

Product Dimension Info

Detailed product dimensions are listed further down this page. All dimensions are nominal and subject to material and manufacturing tolerances. If you need help with a dimension, please email us at your convenience.

The Ace Race Parts brand of HD Clamp Flanges, or Weld Ferrules, are precision CNC machined from 6061 Aluminum and are provided with a set of FKM High Temperature O-Rings. When paired with our HD Clamps and HD Clamp Union Sleeves, our Aluminum HD Clamp Weld Ferrules allow for up to 12 degrees of axial and angular deflection.

PRODUCT HIGHLIGHTS:

  • Burst Pressure Rating: 800 psi
  • Temperature Rating: 400°F / 204°C
  • Axial Movement, Angular Deflection: Up to 12°
  • Full 6061 Aluminum Billet Construction

WHAT'S IN THE BOX:

  • Two (2) 6061 Aluminum Weld Flanges
  • Two (2) FKM High Temperature O-Rings (Green Fluororubber)
