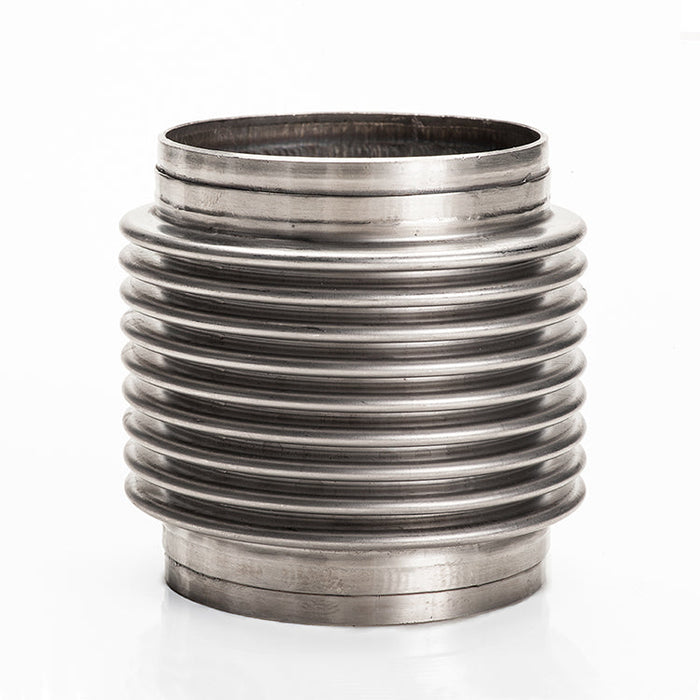

2.375" Flex Bellow (with Inner Liner) x 3.000" Overall Length - 304 Stainless

SKU 24036
Availability:
180 in stock, ready to be shipped
Original price $ 41.95 - Original price $ 41.95
Original price
$ 41.95
$ 41.95 - $ 41.95
Current price $ 41.95

Product Dimension Info

Detailed product dimensions can be found on the main product page. If you need further assistance with product dimensions please email us at your convenience.

The Perfect Flex Bellow for 2" Nominal Pipe Size Material or 2.375" (60mm) Tube Size Material!

FEATURES

  • 100% 304 Stainless Steel Construction
  • 2-Ply Bellow Design
  • Slip-Fit Connection Type (must be welded)
  • Directional Smooth Bore Inner Liner
  • Extremely Durable in High Pressure Applications
  • Pressure Tested (data listed below): 145 psi @ 68°F and 72.5 psi @ 842°F
  • Helium Leak Tested Prior to Shipment

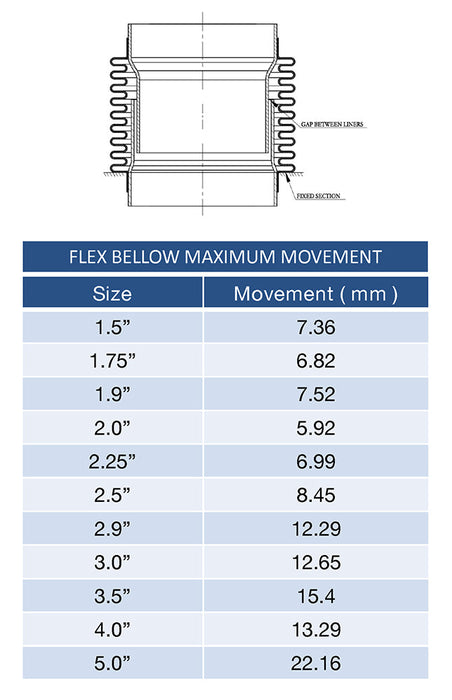

Our 304 Stainless Steel Flex Bellows minimize the potential for cracking in turbo manifolds, dump tubes, downpipes and other automotive and industrial applications. Utilizing a slip-fit design that allows the matching tube size material to slip into the bellow, our exhaust flex bellows feature a smooth bore directional inner liner that needs to be placed in the flow of the exhaust gas.

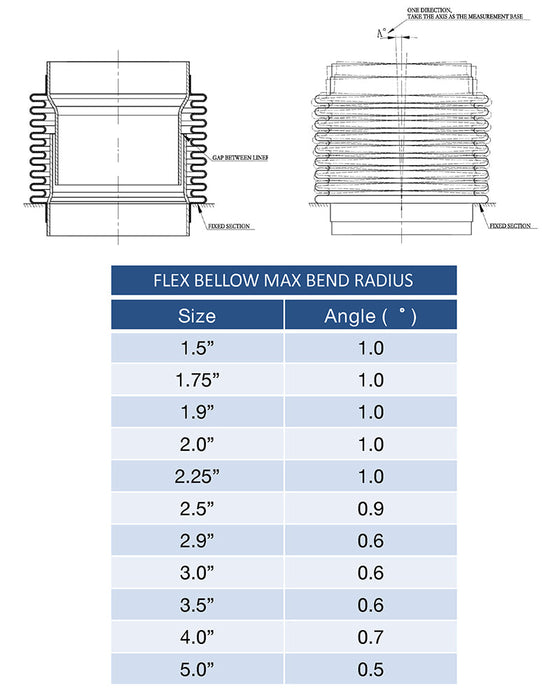

Please note, while this style Flex Bellow is a great choice for applications that experience elongation and compression it is not intended to be used in applications where a large amount of axial flex is required. This specific 2.375" ID Flex Bellow offers a maximum bend angle of 0.9°.
