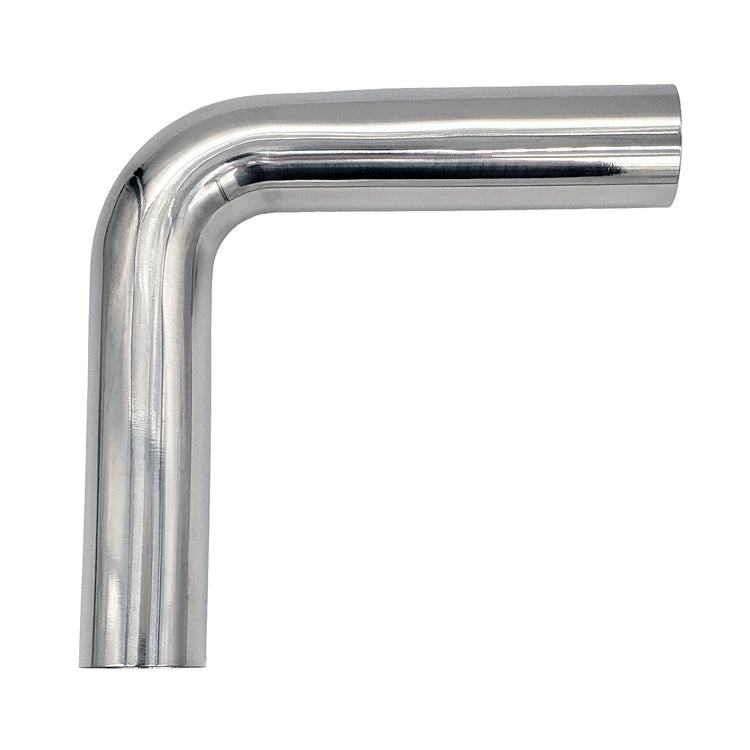

NEW TIGHT RADIUS 90° MANDREL BENDS AVAILABLE NOW!

Our 304 Stainless Steel 90° Mandrel Bends with 6" tangents are now available with a 1D Centerline Radius! Previously, our tightest radius mandrel bends were only available in the short, sanitary style format without any legs (tangents) on either side of the bend. Now, we're happy to be able to offer 1D CLR mandrel bends with 6" legs.

AVAILABLE TIGHT RADIUS 90° MANDREL BENDS

 SKU DESCRIPTION CLR TANGENTS
21065-1 1.750" 16ga Tight Radius 90° Mandrel Bend 304 Stainless 1.750" 6.000" long
21066-1 2.000" 16ga Tight Radius 90° Mandrel Bend 304 Stainless 2.000"
6.000" long
21068-1 2.500" 16ga Tight Radius 90° Mandrel Bend 304 Stainless 2.500"
6.000" long
21070-1 3.000" 16ga Tight Radius 90° Mandrel Bend 304 Stainless 3.000"
6.000" long

AVAILABLE STANDARD RADIUS 90° MANDREL BENDS

 SKU DESCRIPTION CLR TANGENTS
21063
1.500" 16ga 90° Mandrel Bend 304 Stainless
2.250" 6.000" long
21064
1.625" 16ga 90° Mandrel Bend 304 Stainless
2.438"
6.000" long
21065
1.750" 16ga 90° Mandrel Bend 304 Stainless
2.625"
6.000" long
21066
2.000" 16ga 90° Mandrel Bend 304 Stainless
3.000"
6.000" long
21067 2.250" 16ga 90° Mandrel Bend 304 Stainless 3.375"
6.000" long
21074
2.375" 16ga 90° Mandrel Bend 304 Stainless
3.563"
6.000" long
21068
2.500" 16ga 90° Mandrel Bend 304 Stainless
3.750"
6.000" long
21070
3.000" 16ga 90° Mandrel Bend 304 Stainless
4.500"
6.000" long

LIST OF AVAILABLE BEND DEGREES

Each of our mandrel bends are precision bent in a CNC mandrel bender to ensure that the degree and centerline radius of each bend is consistent and free from defects. After the mandrel bending process is completed, each mandrel bend is de-burred and polished to ensure a clean finish on the ends and the surface of the bend. Our mandrel bends are a perfect match for our stainless steel Tube, stainless steel V-Band Clamps and FlangesTube Size FittingsExhaust Flanges, and Flex Couplings and Flex Bellows.
