Reducing V-Band Flange | Ace Race Parts

New Reducing V-Band Flanges and Assemblies Available Now!

Reducing V-Band Assembly 304 Stainless | Ace Race Parts

IF YOU'RE LOOKING FOR A REDUCING V-BAND FLANGE OR V-BAND ASSEMBLY LOOK NO FURTHER!

If you're working with an application that requires a quick transition from one size to another look no further! Our all new Reducing V-Band Flanges and V-Band Assemblies are an affordable option that eliminates the need for additional transition reducers and other components by offering two matching tube sizes in a single V-Band Clamp. At just over 1.625" in combined thickness, our Reducing V-Band Assemblies are the perfect solution for stepping up or down without adding additional length to your exhaust system.

304 Stainless Reducing V-Band Assembly | Ace Race Parts

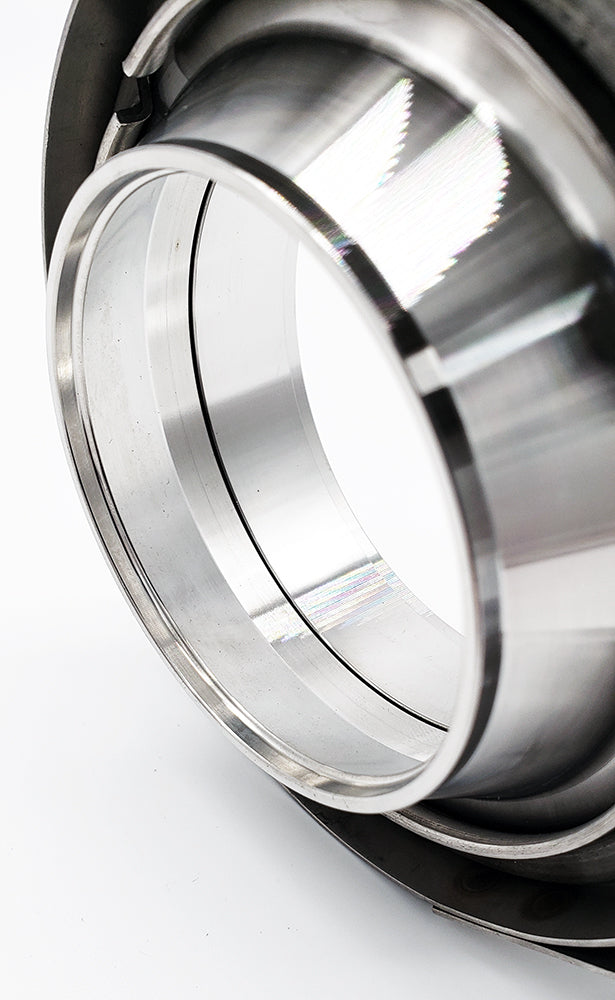

Top View: Looking from the 3.000" ID side of a 3.000" x 2.500" Reducing V-Band Assembly, the smooth CNC machined taper of the 2.500" ID side can be seen.

Reducing V-Band Flanges | Ace Race Parts
Side View: 2.500" ID Reducing V-Band Flange (left) paired with a 3.000" ID V-Band Flange (right)

Ace Race Parts Reducing V-Band Flange | Available in 304 Stainless and Aluminum
Our precision CNC machined 304 Stainless Steel Reducing V-Band Flanges are available with counterbore on the weld side for easy alignment and a "Male" style seating surface to ensure a leak-free seal.

Aluminum Reducing V-Band Flange | Ace Race Parts

Our precision CNC machined Aluminum Reducing V-Band Flanges are available with counterbore on the weld side for easy alignment and a "Female" style seating surface.

Our current Reducing V-Band Flange and Assembly list of SKUs is below for reference:

 SKU DESCRIPTION
22204 2.500" x 2.250" Reducing V-Band Assembly "Male/Female" 304 Stainless - Quick Release Clamp
22205 3.000" x 2.500" Reducing V-Band Assembly "Male/Female" 304 Stainless - Quick Release Clamp
22206 3.500" x 3.000" Reducing V-Band Assembly "Male/Female" 304 Stainless - Quick Release Clamp
22208 4.000" x 3.500" Reducing V-Band Assembly "Male/Female" 304 Stainless - Quick Release Clamp
SKU DESCRIPTION
22137-1 2.250" Reducing V-Band Flange "Male" 304 Stainless - Fits Quick Release Clamp
22138-1 2.500" Reducing V-Band Flange "Male" 304 Stainless - Fits Quick Release Clamp
22140-1 3.000" Reducing V-Band Flange "Male" 304 Stainless - Fits Quick Release Clamp
22142-1 3.500" Reducing V-Band Flange "Male" 304 Stainless - Fits Quick Release Clamp
12065-1 2.500" Reducing V-Band Flange "Female" 6061 Aluminum - Fits Quick Release Clamp
12067-1 3.000" Reducing V-Band Flange "Female" 6061 Aluminum - Fits Quick Release Clamp

Our Quick-Release style V-Band Assemblies are precision CNC machined in an ISO 9001 certified facility and feature a 304 Stainless Steel Quick Release style V-Band Clamp and a set of 304 Stainless Steel interlocking "Male/Female" V-Band Flanges. V-Band Clamps and Flanges are an affordable and durable type of clamping system that is suited for high performance automotive, diesel, and industrial applications.

Our 304 Stainless Quick Release style V-Band Clamp utilize a quick release style latch that allows for quick assembly and disassembly in applications where frequent removal is required. Unlike our "standard" style V-Band Clamps, our Quick Release style V-Band Clamps feature a removable and replaceable T-Bolt section, should the user need to do so.

Our "Male/Female" interlocking style V-Band Flanges feature a interlocking seating surface to ensure a leak-free seal without the need for a gasket and provides an easy way to align the flanges during installation. The interlocking seating surface, the area where the two flanges meet, makes fitment and installation a breeze even in tightest of areas.

The weld side of our 304 Stainless V-Band Flanges are CNC machined with a counterbore to allow the matching tube size material to slip into the V-Band Flange and be welded in place. The V-Band Flange counterbore is machined to be 0.065" wide and allows for the inside diameter (ID) of 16 gauge wall thickness tube to align perfectly with the ID of the V-Band Flange without any restrictions or reductions.
