Ace Race Parts CP2 Titanium V-Band Assemblies are precision CNC machined in an ISO 9001 certified facility and feature a set of CP2 Titanium "Male/Female" interlocking style V-Band Flanges and a 304 Stainless Steel V-Band Clamp. Titanium V-Band Assemblies are an affordable and durable type of clamping system that is suited for high performance automotive, diesel, marine and aerospace applications.
Ace Race Parts brand of "Male/Female" interlocking style V-Band Flanges utilize a interlocking seating surface to ensure a leak-free seal without the need for a gasket and provides an easy way to align the flanges during installation. The interlocking seating surface, the area where the two flanges meet within the clamp, makes fitment and installation a breeze even when in the tightest of areas. The weld side of our CP2 Titanium V-Band Flanges are machined to be a slip-fit style flange that allows the matching Titanium Tube size material to slip into the V-Band Flange and be welded in place with the proper alignment.
Ace Race Parts' CP2 Titanium V-Band Flanges are available for sale as a single flange (both "Male" and "Female" sides are available) and as a full assembly. Replacement clamps are available in 304 Stainless and the matching replacement clamp for 3.000" CP2 Titanium V-Band Flanges is SKU: 72071
Our CP1 Titanium V-Band Flanges offer a high quality welding experience and is ensured to fit perfectly with our Titanium Tube, Titanium Mandrel Bends, Titanium V-Band Clamps & Flanges, Titanium Pie Cuts, Titanium Flex Bellows, Titanium Bungs, and Titanium Flanges. For the best welding experience, choose Ace Race Parts brand Titanium Welding Wire, available in both 0.039" (1mm) and 0.063" (1.6mm) diameters.

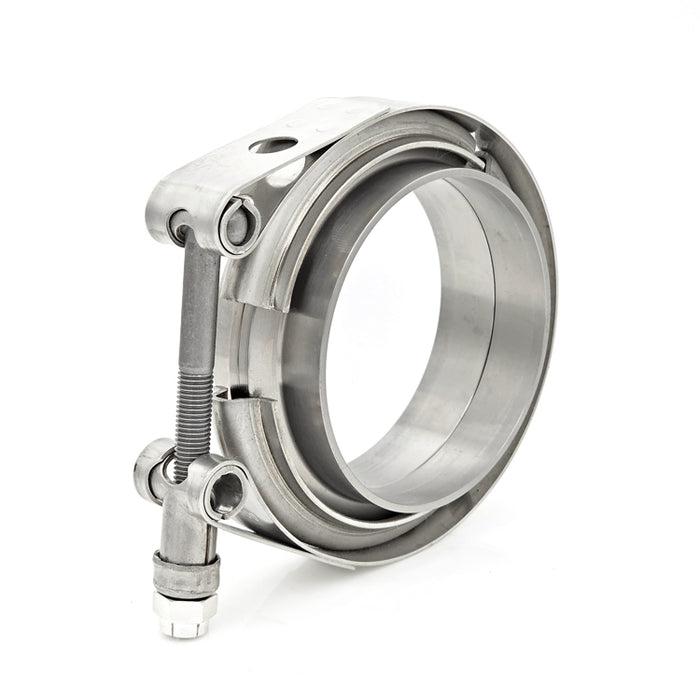

Each Titanium V-Band Clamp Assembly includes one (1) Standard T-Bolt style V-Band Clamp and two (2) CP2 Titanium "Male/Female" Interlocking V-Band Flanges.
|Individual Flange Thickness (Single Flange)||0.845"|
|Clamp Type||V-Band, Standard T-Bolt|
|Flange Material Type||CP2 Titanium|
|Clamp Material Type||304 Stainless|
Metal Lock Nut (QTY: 1)
Non-Locking Nut (QTY: 1)
Fastener Size (Material)
|5/16"-24 (Zinc Plated)|
Please note: Our V-Band clamps are supplied with a metal lock nut and a non-locking hex nut. The metal lock nut is a locking-style nut and is not intended to be used during mock-up. Attempting to thread, remove, and re-thread the lock nut may cause damage to the "T-Bolt" section of the clamp. In some cases, excessive force can damage and/or break the "T-Bolt" section of the clamp. If you intend to use our clamps during the mock-up process please use a non-locking hex nut.
Ace Race Parts is not responsible for damage caused to our clamps due to the use of the locking-style nut during mock-up or removal. The thread pitch of our hex nuts, lock nuts and the threaded portion of the "T-Bolt" section of the clamp is 5/16"-24 (fine thread).
Note: The photo of the three types of nuts includes a nylon lock nut. This type of nut is not always supplied with our v-bands. The two main types of nuts supplied with each v-band assembly or clamp is the metal non-locking hex nut (finish hex nut) and the metal lock nut. If you would like a nylon lock nut to be supplied with your order please contact us.
