How to Choose the Right V-Band Clamp and Flange for Your Application

Standard, Quick Release, Aluminum, Titanium — and How to Know Which One You Need

One of the most common questions we get at Ace Race Parts is some version of the same thing: "How do I know which V-band clamp to order?" It's asked by builders, fabricators, and tuners at every level — and it makes sense. V-band clamps look straightforward, but finding the right one can get complicated fast.

The short answer is that there is no industry-wide sizing standard for V-band flanges. Different manufacturers use different dimensions, even for the same tube size, which means a clamp that fits one product may not fit another even if the tube OD is identical. We cover the full measurement process on our V-Band Clamp and Flange Dimensions page, including a downloadable dimension catalog and measurement diagrams. This post is meant to complement that resource by walking through the two most common situations and helping you determine which path applies to you.

Scenario 1: You Are Matching an Existing V-Band Flange

If you already have a V-band flange on a turbo, manifold, downpipe, or other component and need to find a compatible clamp or a matching second flange, measurements are the only reliable way to confirm compatibility. There are five key measurements to take, and a set of calipers makes this much easier than a tape measure.

1. Counterbore ID / Matching Tube OD
Measure the outside diameter (OD) of the tube that will be welded to the flange, or measure the inside diameter of the counterbore on the weld side of the flange. This is your baseline tube size.

2. Overall Flange Outside Diameter (OD)
Measure across the largest part of the seating surface of the flange — the side that meets the mating flange, not the weld side. This is one of the most critical dimensions for matching a clamp.

3. Apex Width
The apex width is the thickness of the flat edge of the flange where the clamp seats. Measure only the flat portion, not the full angled profile.

4. Base Width
Measure the full base width of the flange.

5. Male/Female Retainer Ring Diameter and Depth
If your flanges use a male/female interlocking design, measure the diameter and depth of the retainer ring. If your flanges are flat style with no interlocking feature, skip this step. A female flange can be paired with a flat-style flange if a matching flat flange is not available.

Once you have these measurements, cross-reference them against our dimension catalog using the link on our V-Band Clamp and Flange Dimensions page. Pages 2 and 3 of the PDF walk through each measurement point with diagrams, and the dimension tables follow on the subsequent pages. If you find a match in our inventory, great. If not, the same measurements will help you search anywhere else.

Scenario 2: You Are Building a New Application with No Existing Flange to Match

If you are designing a new exhaust, turbo outlet, wastegate, or other fabrication from scratch, you have more flexibility — you are not constrained by an existing flange's dimensions. In this case, there is no measuring required. You simply need to know your tube OD and choose which style of V-band system works best for your application.

We carry V-Band Assemblies in sizes ranging from 1.500" to 6.000" OD in both Standard and Quick Release styles, available in 304 Stainless, Mild Steel, Aluminum, and Titanium flange options. A full V-Band Assembly includes a Male Flange, a Female Flange, and a Clamp — everything needed to complete the connection.

Choosing between Standard and Quick Release comes down to use case. If the connection will only be removed occasionally, either style works well. If the connection will be accessed frequently — for maintenance, tuning, or regular service — the Quick Release style is the better choice. The T-bolt fastener on the Quick Release clamp is a removable and replaceable component, which makes it more practical for high-cycle use.

Understanding the Two Style Families — and Why They Are Not Interchangeable

This is where a lot of mix-ups happen, and it is worth understanding before ordering. Our V-Band Clamps and Flanges come in two distinct style families, each with its own flange dimensions. The two styles are not cross-compatible — a Standard style clamp will not work with a Quick Release style flange, and vice versa.

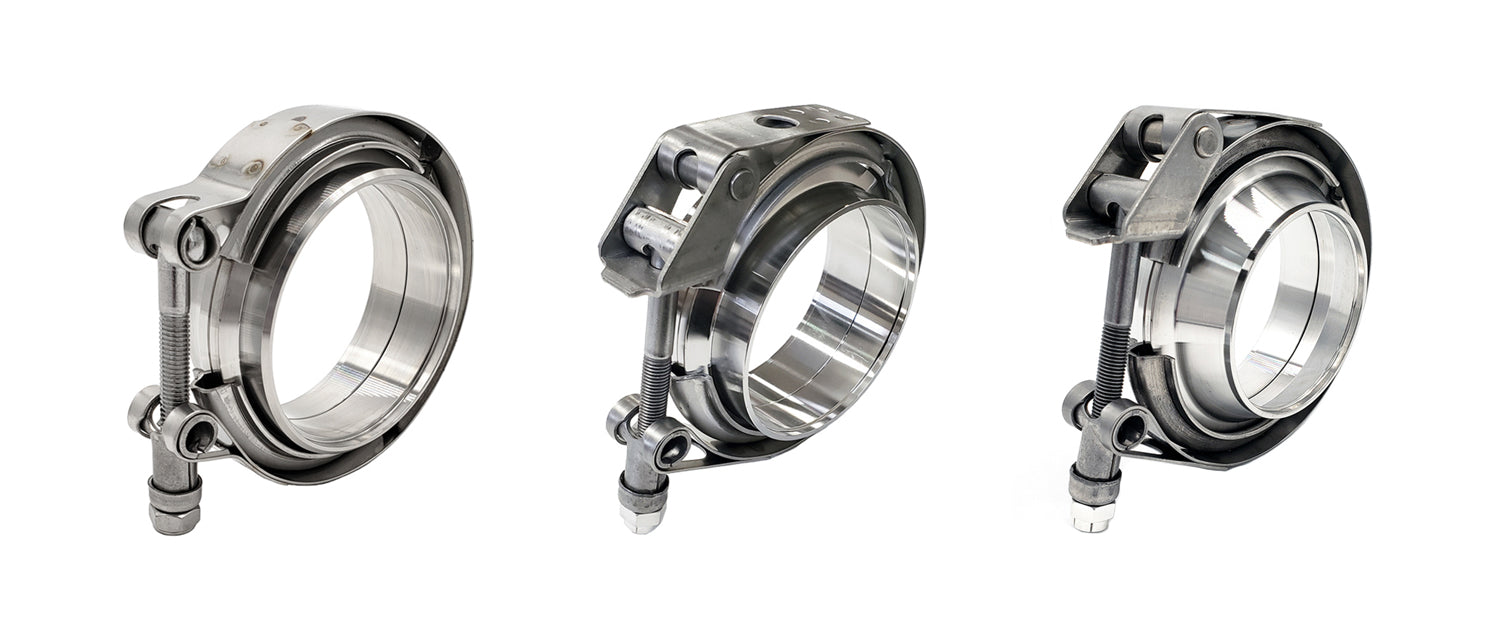

Standard style (304 Stainless SKUs beginning with 220xx; Mild Steel SKUs beginning with 320xx):

• Flange apex width: 0.170"
• Flange base width: 0.287"

Quick Release style (304 Stainless SKUs beginning with 221xx):

• Flange apex width: 0.137"
• Flange base width: 0.210"

To illustrate the difference: our 3.000" OD Standard Assembly has an overall flange OD of 3.583", while the 3.000" OD Quick Release Assembly has an overall flange OD of 3.750". The flanges look similar but are dimensionally different and will not seal correctly if mixed.

One additional compatibility note: the Quick Release style flange profile is shared with our Aluminum and Titanium flanges. This means Quick Release clamps are compatible with Aluminum and Titanium flanges, making it straightforward to mix materials within a build — for example, pairing a Titanium flange on the turbo side with a Stainless Quick Release flange and clamp on the downpipe side. Standard style flanges (220xx / 320xx) are their own isolated system and are not compatible with Quick Release, Aluminum, or Titanium components.

If you are starting a new build and selecting a style, make sure every component in the system — clamp, male flange, and female flange — belongs to the same style family.

A Note on Fasteners

Every V-Band Clamp or Assembly we sell includes two types of nuts: a zinc-plated hex lock nut and a zinc-plated non-locking hex nut.

Use the non-locking nut during mock-up and fitment. The lock nut begins to engage as soon as it is threaded onto the bolt, and repeated removal and reinstallation will damage the T-bolt. Save the lock nut for final installation only.

Torque specs for all sizes and styles:

• Dry: 10–14 ft/lbs
• Lubed: 7.2–10 ft/lbs

Do not use an impact wrench to install a V-Band Clamp. For full installation notes, visit our V-Band Clamp Installation Notes page.
