Ace Race Parts Turbo Inlet Flanges and Discharge Flanges are precision machined in an ISO 9001 certified facility from 1/2" thick 304 Stainless Steel plate to help minimize warping during the welding process.

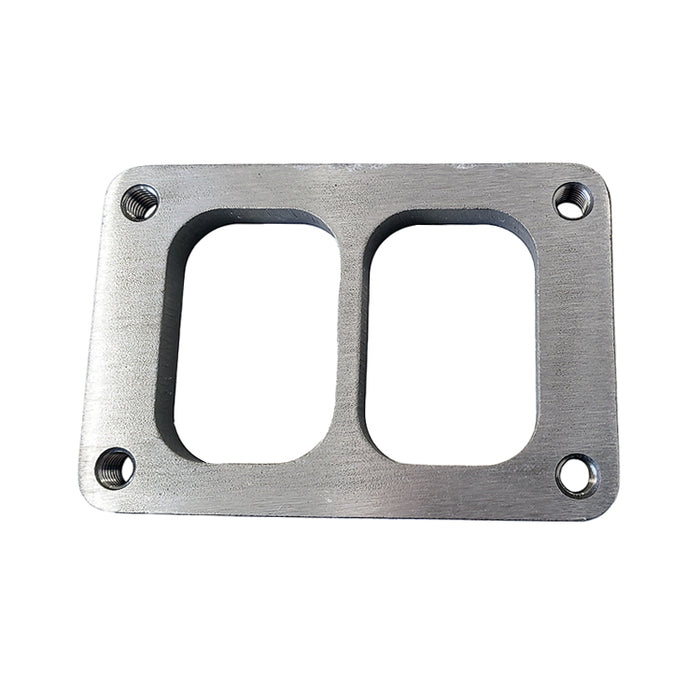

Our T6 Turbo Divided Inlet Flange features M10 x 1.5 threaded holes and a smooth, flat finish on all sides of the flange. The bolt pattern of this flange is 4.5" x 2.75" and works with the following applications:
- Generic T6 Divided Turbine Inlets
Note: may not be compatible with some BorgWarner applications
Please be sure to verify the bolt pattern of your existing application before purchasing this T6 Divided Turbine Inlet Flange.
DETAILED T6 TURBO INLET FLANGE SPECIFICATIONS:Flange Type | T06 Inlet (Divided) |
Thickness | 1/2" (0.500") |
Threaded Holes | Yes, M10 x 1.5 |
Bolt Pattern | 4.5" x 2.75" |
Material Finish | Mill Finish |
Material Type | 304L Stainless |
Compatible Gasket | 27137 |
