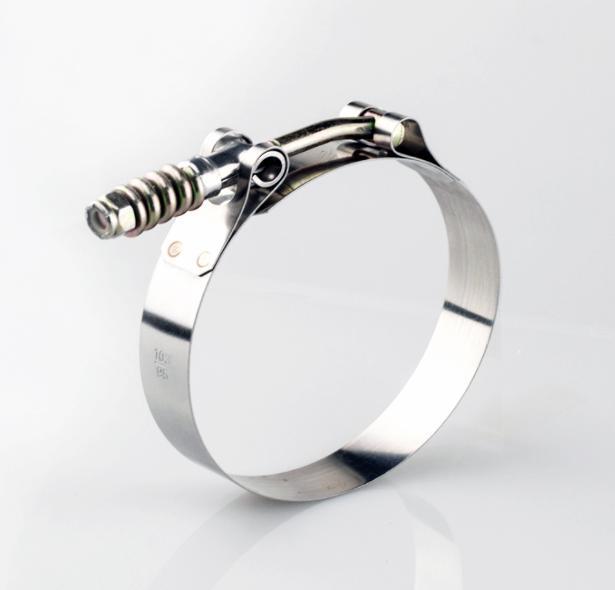

Light Duty Spring Loaded T-Bolt Clamp 304 Stainless - For 4.000" ID Silicone (Clamping Range: 4.28" - 4.58")
SKU:Brand: Ace Race Parts
Ace Race Parts Light Duty Spring Loaded 304 Stainless Steel T-Bolt Clamps are manufactured to be a heavy duty leak-free and corrosion resistant option for securing silicone hoses in automotive, diesel, marine and industrial applications. Our Light Duty Spring Loaded clamps are manufactured with smooth, rounded edges to ensure that they are smooth enough to be used with soft hose materials.
Each 304 Stainless Steel T-Bolt Clamp is provided with a Zinc plated lock nut to ensure that the nut is able to be secured in place without galling. Ace Race Parts Spring Loaded T-Bolt Clamps are available in nominal sizes from 2.000" to 4.000" and will work in a wide variety of applications and environments.
FEATURES:
- Clamping Range: 4.28" - 4.58"
- Matching Silicone Hose: 4.000" ID, 4-Ply
- Recommended Torque: 50 in.-lbs [5.6N.m]
- Spring Rate: 1900 lbs/in [12.5MPa], capable of generating a load of 300 lbs
Proper measurement is extremely important when it comes to selecting the proper size for your application. Please choose your T-Bolt Clamp based on your SILICONE HOSE ID SIZE. For example, if your applications requires a 2.000" ID Silicone Hose the this 2.000" T-Bolt Clamp is a suitable clamp for your application. If you are unsure of what size clamp you need please contact us.
DETAILED SPECIFICATIONS
Matching Silicone Size | 4.000" ID |
Clamping Range | 4.28" - 4.58" |
Material Type | 304 Stainless |
Spring Loaded | Yes, Light Duty |
