V-Band Clamp Sizing Information: Our V-Band Clamp sizing is in reference to the intended matching tube size diameter, not the clamping range of the clamp itself. This specific V-Band Clamp is intended to be used with 2.250" ID V-Band Flanges (matching tube size: 2.250" OD) and will accept V-Band Flanges with an overall OD of 2.835".
If you need assistance in finding a matching V-Band Clamp for an existing application please review our "How To Measure A V-Band Flange" information here: How to Measure a V-Band Flange.

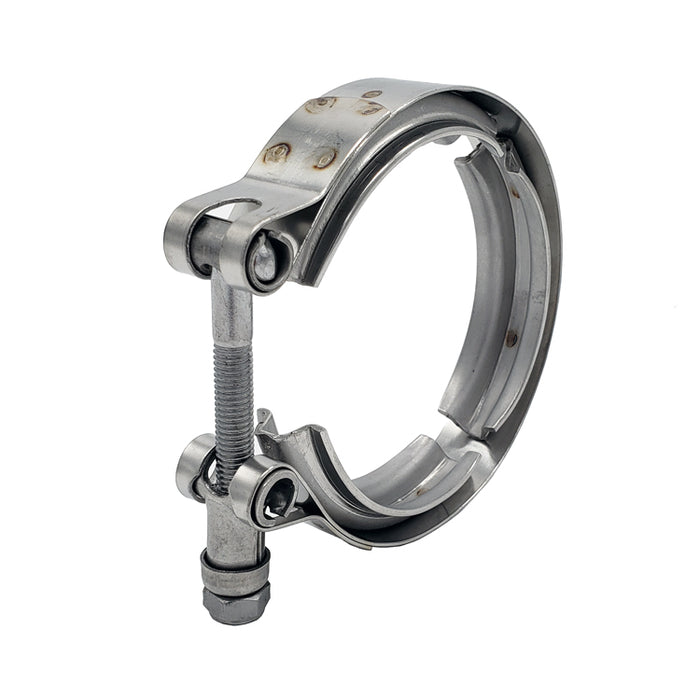

Ace Race Parts 304 Stainless Steel V-Band Clamps feature a "Standard" T-Bolt style clamping mechanism to ensure a tight, leak-free seal. V-Band Clamps and V-Band Flanges are an affordable and durable type of clamping system that is suited for high performance automotive, diesel, marine and industrial applications.
Ace Race Parts' brand of 304 Stainless Steel V-Band Clamps are specifically made for our 304 Stainless and Mild Steel V-Band Flanges. Due to flange thickness differences, Standard T-Bolt Style V-Band Clamps are not compatible with our Aluminum, Aluminum/Stainless Combination, and Quick Release Style V-Band Clamps, Flanges or Assemblies.
